    Product Center > Deep Groove Ball Bearings

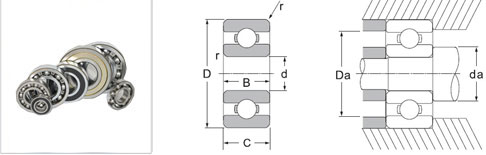

Dimention >> Other Parameters >>
Basic
Bearing
No.
Nominal Bearing Dimensions
Preferred Shoulder Diameters
d
D
B,C
r (min)
da (min)
da (max)
Da (max)
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
624
 4
0.1575
13
0.5118
5
0.1968
0.2
0.007
5.6
0.220
6.2
0.244
11.4
0.449
625
 5
0.1969
13
0.6299
5
0.1968
0.3
0.012
7.0
0.276
7.6
0.299
14.0
0.551
626
 6
0.2362
16
0.7480
6
0.2362
0.3
0.012
8.0
0.315
9.5
0.374
17.0
0.669
627
 7
0.2756
22
0.8661
7
0.2756
0.3
0.012
9.0
0.354
12.2
0.480
20.0
0.787
628
5
0.3149
24
0.9448
8
0.3149
0.3
0.012
10.0
0.394
12.1
0.476
17.0
0.669
629
9
0.3543
26
1.0236
8
0.3149
0.3
0.012
11.5
0.453
...
...
14.0
0.945
6200
10
0.3937
30
1.1811
9
0.3543
0.6
0.024
12.7
0.500
16.0
0.630
26.0
1.024
6201
12
0.4724
32
1.2598
10
0.3937
0.6
0.024
14.7
0.578
17.0
0.670
28.0
1.102
6201-1/2
12.7
0.5000
32
1.2598
10
0.3937
0.6
0.024
15.1
0.595
17.0
0.670
27.0
1.063
6202
15
0.5906
35
1.3780
11
0.4331
0.6
0.024
17.9
0.703
20.0
0.787
31.0
1.220
6202-5/8
15.875
0.6250
35
1.3780
11
0.4331
0.6
0.024
18.5
0.730
19.0
0.749
30.0
1.181
6202-16
16
0.6299
35
1.3780
11
0.4331
0.6
0.024
18.8
0.740
19.0
0.749
30.0
1.181
6203
17
0.6693
40
1.5748
12
0.4724
0.6
0.024
20.0
0.787
23.5
0.926
36.0
1.417
6203-5/8
15.875
0.6250
40
1.5748
12
0.4724
0.6
0.024
19.1
0.750
23.5
0.926
35.1
1.380
6204
20
0.7874
47
1.8504
14
0.5512
1.0
0.039
24.6
0.969
28.0
1.102
42.0
1.654
6205
25
0.9843
52
2.0470
15
0.5906
1.0
0.039
30.0
1.181
32.0
1.260
47.0
1.850
6206
30
1.1811
62
2.4409
16
0.6299
1.0
0.039
35.0
1.378
39.0
1.535
57.0
2.244
6207
35
1.3780
72
2.8346
17
0.6693
1.1
0.043
41.0
1.614
45.0
1.772
65.5
2.579
6208
40
1.5748
80
3.1496
18
0.7087
1.1
0.043
46.0
1.811
51.0
2.008
73.5
2.894
6209
45
1.7717
85
3.3465
19
0.7480
1.1
0.043
51.0
2.008
55.5
2.185
78.5
3.091
6210
50
1.9685
90
3.5433
20
0.7874
1.1
0.043
56.0
2.205
60.0
2.362
83.5
3.287
6211
55
2.1654
100
3.9370
21
0.8268
1.5
0.059
62.0
2.441
67.0
2.638
92.0
3.622
6212
60
2.3622
110
4.3307
22
0.8661
1.5
0.059
68.0
2.677
75.0
2.953
102.0
4.016
6213
65
2.5591
120
4.7244
23
0.9055
1.5
0.059
73.0
2.874
80.5
3.169
112.0
4.409
6214
70
2.7559
125
4.9213
24
0.9449
1.5
0.059
78.0
3.071
85.0
3.346
117.0
4.606
6215
75
2.9528
130
5.1181
25
0.9843
1.5
0.059
83.0
3.268
90.5
3.563
122.0
4.803
6216
80
3.1496
140
5.5118
26
1.0236
2.0
0.0787
89.0
3.504
95.5
3.760
131.0
5.157
6217
85
3.3465
150
5.9055
28
1.1024
2.0
0.0787
94.0
3.701
103.0
4.055
141.0
5.551
6218
90
3.5433
160
6.2992
30
1.1811
2.0
0.0787
99.0
3.898
109.0
4.291
151.0
5.945
6219
95
3.7402
170
6.6929
32
1.2598
2.1
0.0827
106.0
4.173
116.0
4.567
159.0
6.260
6220
100
3.9370
180
7.0866
34
1.3386
2.1
0.0827
111.0
4.370
122.0
4.803
169.0
6.654
6221
105
4.1399
190
7.4803
36
1.4173
2.1
0.0827
116.0
4.567
125.0
4.921
179.0
7.047
6222
110
4.3307
200
7.8740
38
1.4961
2.1
0.0827
121.0
4.764
132.0
5.197
189.0
7.441
