    Product Center > Deep Groove Ball Bearings

Dimention >> Other Parameters >>

Basic
Bearing
No.

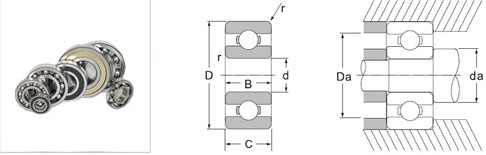

Nominal Bearing Dimensions

Preferred Shoulder Diameters

d

D

B,C

r (min)

da (min)

da (max)

Da (max)

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

635

5 0.1969 19 0.7480 6 0.2362 0.3 0.012 7.0 0.276 9.5 0.374 17.0 0.669

636

6 0.2362 22 0.8661 7 0.8661 0.3 0.012 ... ... ... ... ... ...

637

7 0.2756 26 1.0236 9 0.3543 0.3 0.012 ... ... ... ... ... ...

638

8 0.3149 28 1.1024 9 0.3543 0.3 0.012 10.0 0.394 ... ... 26.0 1.024

639

9 0.3543 30 1.1811 10 0.3937 0.6 0.024 ... ... ... ... ... ...

6300

10 0.3937 35 1.3780 11 0.4331 0.6 0.024 14.0 0.551 17.0 0.669 31.0 1.220

6301

12 0.4724 37 1.4567 12 0.4724 1.0 0.039 16.7 0.656 18.5 0.728 32.0 1.260

6302

15 0.5906 42 1.6535 13 0.5118 1.0 0.039 19.8 0.781 23.0 0.906 37.0 1.457

6303

17 0.6693 47 1.8504 14 0.5512 1.0 0.039 22.0 0.866 25.5 1.005 42.0 1.654

6304

20 0.7874 52 2.0472 15 0.5906 1.1 0.043 25.8 1.016 28.5 1.122 45.5 1.791

6305

25 0.9843 62 2.4409 17 0.6693 1.1 0.043 31.0 1.220 36.0 1.418 55.5 2.185

63/28

28 1.1024 68 2.6772 18 0.7087 1.10 0.043 35.0 1.378 ... ... 1.0 2.402

6306

30 1.1811 72 2.8346 19 0.7480 1.1 0.043 36.5 1.437 43.0 1.693 65.5 2.579

6307

35 1.378 80 3.1496 21 0.8268 1.5 0.059 42.9 1.688 47.0 1.850 72.0 2.835

6308

40 1.5748 90 3.5433 23 0.9055 1.5 0.059 48.0 1.890 54.0 2.126 82.0 3.228

6309

45 1.7717 100 3.9370 25 0.9843 1.5 0.059 53.0 2.087 61.5 2.421 92.0 3.622

6310

50 1.9685 110 4.3307 27 1.0630 2.0 0.079 59.0 2.323 68.5 2.697 101.0 3.976

6311

55 2.1654 120 4.7244 29 1.1417 2.0 0.079 64.0 2.520 74.0 2.913 111.0 4.370

6312

60 2.3622 130 5.1181 31 1.2205 2.1 0.083 71.0 2.795 80.5 3.169 119.0 4.685

6313

65 2.5591 140 5.5118 33 1.2992 2.1 0.083 76.0 2.992 86.0 3.386 129.0 5.079

6314

70 2.7559 150 5.9055 35 1.3740 2.1 0.083 81.0 3.189 92.5 3.642 139.0 5.472

6315

75 2.9528 160 6.2992 37 1.4567 2.1 0.083 86.0 3.386 99.0 3.898 149.0 5.866

6316

80 3.1496 170 6.6929 39 1.5354 2.1 0.083 91.0 3.583 105.0 4.134 159.0 6.260

6317

85 3.3465 180 7.0866 41 1.6142 3.0 0.1181 98.0 3.858 112.0 4.409 167.0 6.575

6318

90 3.5433 190 7.4803 43 1.6929 3.0 0.1181 103.0 4.055 118.0 4.646 177.0 6.968

6319

95 3.7402 200 7.8740 45 1.7717 3.0 0.1181 108.0 4.252 125.0 4.921 187.0 7.362

6320

100 3.9370 215 8.4646 47 1.8504 3.0 0.1181 113.0 4.488 113.0 5.240 200.0 7.913
