Product Center > Deep Groove Ball Bearings

Dimention >>

Other Parameters >>

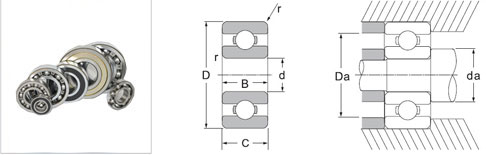

Basic Bearing No.	Nominal Bearing Dimensions								Preferred Shoulder Diameters
	d		D		B				r (min)		da (min)		da (max)		Da (max)
	d		D		Open		Shielded sealed		r (min)		da (min)		da (max)		Da (max)
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
685	5	0.1969	11	0.4331	3	0.1181	5	0.1969	0.15	0.006	6.2	0.244	6.2	0.244	9.9	0.390
686	6	0.2362	13	0.5118	3.5	0.1378	5	0.1969	0.15	0.006	7.4	0.291	7.4	0.291	11.7	0.461
687	7	0.2756	14	0.5512	3.5	0.1378	5	0.1969	0.15	0.006	8.5	0.335	8.5	0.335	12.7	0.500
688	8	0.3150	16	0.6299	4	0.1575	5	0.1969	0.20	0.008	...	...	...	...	...	...
689	9	0.3543	17	0.6693	4	0.1575	5	0.1969	0.20	0.008	10.7	0.421	10.7	0.421	15.2	0.598
6800	10	0.3937	19	0.7480	5	0.1969	5	0.1969	0.30	0.012	12.0	0.472	14.0	0.551	17.8	0.700
6800W7	10	0.3937	19	0.7480	7	0.2756	7	0.2756	0.30	0.012	...	...	...	...	...	...
6801	12	0.4724	21	0.8268	5	0.1969	5	0.1969	0.30	0.012	14.0	0.551	14.5	0.571	19.0	0.748
6802	15	0.5906	24	0.9449	5	0.1969	5	0.1969	0.30	0.012	17.0	0.669	17.5	0.689	22.0	0.866
6803	17	0.6693	26	1.0236	5	0.1969	5	0.1969	0.30	0.012	19.0	0.748	19.5	0.768	24.0	0.945
6804	20	0.7874	32	1.2598	7	0.2756	7	0.2756	0.30	0.012	22.0	0.866	22.5	0.886	30.0	1.181
6805	25	0.9843	37	1.4567	7	0.2756	7	0.2756	0.30	0.012	27.0	1.063	28.0	1.102	35.0	1.378
6806	30	1.1811	42	1.6535	7	0.2756	7	0.2756	0.30	0.012	32.0	1.260	33.0	1.299	40.0	1.575
6807	35	1.3780	47	1.8504	7	0.2756	7	0.2756	0.30	0.012	37.0	1.457	38.0	1.496	45.0	1.772
6808	40	1.5748	52	2.0472	7	0.2756	7	0.2756	0.30	0.012	42.0	1.654	43.0	1.693	50.0	1.969
6809	45	1.7717	58	2.2835	7	0.2756	7	0.2756	0.30	0.012	47.0	1.850	48.0	1.890	56.0	2.205
6810	50	1.9685	65	2.5591	7	0.2756	7	0.2756	0.30	0.012	52.0	2.047	54.0	2.126	63.0	2.480
