    Product Center > Deep Groove Ball Bearings

Dimention >> Other Parameters >>

Basic
Bearing
No.

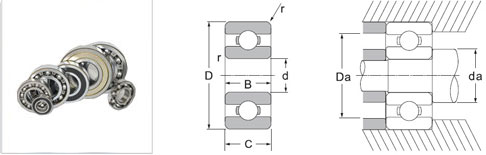

Nominal Bearing Dimensions

Preferred Shoulder Diameters

d

D

B,C

r (min)

da (min)

da (max)

Da (max)

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

693

3 0.1181 8 0.3150 3 0.1181 0.15 0.006 4.3 0.169 4.3 0.169 7.3 0.287

W693

3 0.1181 8 0.3150 4 0.1575 0.15 0.006 4.2 0.165 4.2 0.165 6.8 0.268

694

4 0.1575 11 0.4331 4 0.1575 0.20 0.008 5.2 0.205 5.2 0.205 9.8 0.386

695

5 0.1969 13 0.5118 4 0.1575 0.20 0.008 6.6 0.260 6.6 0.260 11.4 0.449

696

6 0.2362 15 0.5906 5 0.1969 0.30 0.012 7.6 0.299 7.6 0.299 13.4 0.528

697

7 0.2756 17 0.6693 5 0.1969 0.30 0.012 9.0 0.354 9.0 0.354 15.0 0.591

698

8 0.3150 19 0.7480 6 0.2362 0.30 0.012 10.0 0.394 10.0 0.394 16.5 0.650

699

9 0.3543 20 0.7874 6 0.2362 0.30 0.012 11.0 0.433 11.6 0.457 18.0 0.709

6900

10 0.3937 22 0.8661 6 0.2362 0.30 0.012 12.0 0.472 13.0 0.512 20.0 0.787

6901

12 0.4724 24 0.9449 6 0.2362 0.30 0.012 14.0 0.551 15.0 0.591 22.0 0.866

6902

15 0.5906 28 1.1024 7 0.2756 0.30 0.012 17.0 0.669 17.5 0.689 26.0 1.024

6903

17 0.6693 30 1.1811 7 0.2756 0.30 0.012 19.0 0.748 20.0 0.787 28.0 1.102

6904

20 0.7874 37 1.4567 9 0.3543 0.30 0.012 22.0 0.866 24.0 0.945 35.0 1.378

6905

25 0.9843 42 1.6535 9 0.3543 0.30 0.012 27.0 1.063 29.0 1.142 40.0 1.575

6906

30 1.1811 47 1.8504 9 0.3543 0.30 0.012 32.0 1.260 34.0 1.339 45.0 1.772

6907

35 1.3780 55 2.1654 10 0.3937 0.30 0.012 39.0 1.535 40.0 1.575 51.0 2.008

6908

40 1.5748 62 2.4409 12 0.4724 0.30 0.012 44.0 1.732 46.0 1.811 58.0 2.283

6909

45 1.7717 68 2.6772 12 0.4724 0.30 0.012 49.0 1.929 51.0 2.008 64.0 2.520

6910

50 1.9685 72 2.8346 12 0.4724 0.30 0.012 54.0 2.126 55.5 2.185 68.0 2.677
