    Product Center > Deep Groove Ball Bearings

Dimention >> Other Parameters >>

Basic
Bearing
No.

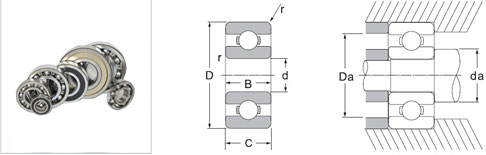

Nominal Bearing Dimensions

Preferred Shoulder Diameters

d

D

B,C

r (min)

da (min)

da (max)

Da (max)

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

62200

10 0.3937 30 1.1811 14 0.5512 0.6 0.0236 14.2 0.5591 ... ... 25.8 1.0157

62201

12 0.4724 32 1.2598 14 0.5512 0.6 0.0236 16.2 0.6378 ... ... 27.8 1.0945

62202

15 0.5906 35 1.3780 14 0.5512 0.6 0.0236 19.2 0.7559 ... ... 30.8 1.2126

62203

17 0.6693 40 1.5748 16 0.6299 0.6 0.0236 21.2 0.8346 ... ... 35.8 1.4094

62204

20 0.7874 47 1.8504 18 0.7087 1.0 0.0394 25.6 1.0079 ... ... 41.4 1.6299

62205

25 0.9843 52 2.0472 18 0.7087 1.0 0.0394 30.6 1.2047 ... ... 46.4 1.8268

62206

30 1.1811 62 2.4409 20 0.7874 1.0 0.0394 35.6 1.4016 ... ... 56.4 2.2205

62207

35 1.3780 72 2.8346 23 0.9055 1.1 0.0433 42.0 1.6535 ... ... 65.0 2.5591

62208

40 1.5748 80 3.1496 23 0.9055 1.1 0.0433 47.0 1.8504 ... ... 73.0 2.8740

62209

45 1.7717 85 3.3465 23 0.9055 1.1 0.0433 52.0 2.0472 ... ... 78.0 3.0709

62210

50 1.9685 90 3.5433 23 0.9055 1.1 0.0433 57.0 2.2441 ... ... 83.0 3.2677

62211

55 2.1654 100 3.9370 25 0.9843 1.5 0.0591 64.0 2.5197 ... ... 91.0 3.5827

62212

60 2.3622 110 4.3307 28 1.1024 1.5 0.0591 69.0 2.7165 ... ... 101.0 3.9764

62213

65 2.5591 120 4.7244 31 1.2205 1.5 0.0591 74.0 2.9134 ... ... 111.0 4.3701

62214

70 2.7559 125 4.9213 31 1.2205 1.5 0.0591 79.0 3.1102 ... ... 116.0 4.5669

62300

10 0.3937 35 1.3780 17 0.6693 0.6 0.0236 14.2 0.5591 ... ... 30.8 1.2126

62301

12 0.4724 37 1.4567 17 0.6693 1.0 0.0394 17.6 0.6929 ... ... 31.4 1.2362

62302

15 0.5906 42 1.6535 17 0.6693 1.0 0.0394 20.6 0.8110 ... ... 36.4 1.4331

62303

17 0.6693 47 1.8504 19 0.7480 1.0 0.0394 22.6 0.8898 ... ... 41.4 1.6299

62304

20 0.7874 52 2.0472 21 0.8268 1.1 0.0433 27.0 1.0630 ... ... 45.0 1.7717

62305

25 0.9843 62 2.4409 24 0.9449 1.1 0.0433 32.0 1.2598 ... ... 55.0 2.1654

62306

30 1.1811 72 2.8346 27 1.0630 1.1 0.0433 37.0 1.4567 ... ... 65.0 2.5591

62307

35 1.3780 80 3.1496 31 1.2205 1.5 0.0591 44.0 1.7323 ... ... 71.0 2.7953

62308

40 1.5748 90 3.5433 33 1.2992 1.5 0.0591 49.0 1.9291 ... ... 81.0 3.1890

62309

45 1.7717 100 3.9370 36 1.4173 1.5 0.0591 54.0 2.1260 ... ... 91.0 3.5827

62310

50 1.9685 110 4.3307 40 1.5748 2.0 0.0787 61.0 2.4016 ... ... 99.0 3.8976

62311

55 2.1654 120 4.7244 43 1.6929 2.0 0.0787 66.0 2.5984 ... ... 109.0 4.2913

62312

60 2.3622 130 5.1181 46 1.8110 2.1 0.0827 72.0 2.8346 ... ... 118.0 4.6457

62313

65 2.5591 140 5.5118 48 1.8898 2.1 0.0827 77.0 3.0315 ... ... 128.0 5.0394

62314

70 2.7559 150 5.9055 51 2.0079 2.1 0.0827 82.0 3.2283 ... ... 138.0 5.4331
